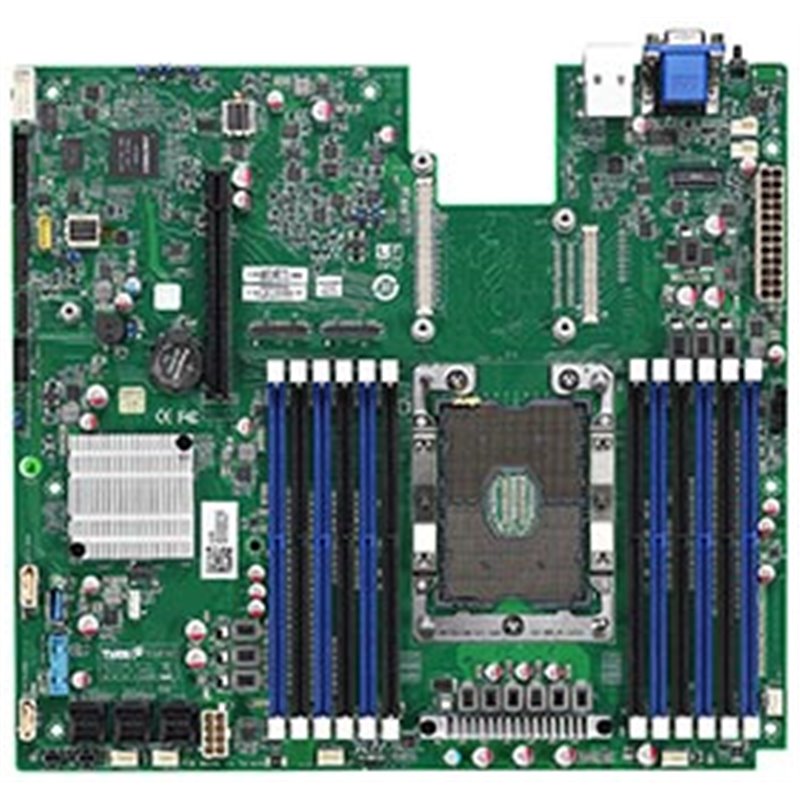

TYAN S5630

Processor

Q'ty / Socket Type

(1) LGA3647

Supported CPU Series

Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor

Thermal Design Power (TDP) Wattage

Max up to 205W

Chipset

PCH

Intel C621

Memory

Supported DIMM Qty

(12) DIMM slots

DIMM Type / Speed

DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / DDR4 JEDEC NVDIMM 2666 / Intel Optane DC Persistent Memory Module (DCPMM)

Capacity

Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR

Memory channel

6 Channels

Memory voltage

1.2V

Notification:

DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail.

Expansion Slots

PCI-E

(1) PCI-E Gen3 x16 slot

Others:

(1) PCI-E Gen3 x8 OCP 2.0 slot (conn.A+conn.B)

LAN

Q'ty / Port

(1) PHY

PHY

Realtek RTL8211E

Storage

SATA

Connector

(2) Mini-SAS HD (8-ports)

Controller

Intel C621

Speed

6Gb/s

RAID

RAID 0/1/10/5 (Intel RSTe)

sSATA

Connector

(2) SATA-DOM / (1) Mini-SAS HD (4-ports)

Controller

Intel C621

Speed

6Gb/s

RAID

RAID 0/1/10/5 (Intel RSTe)

Graphic

Connector type

D-Sub 15-pin

Resolution

Up to 1920x1200

Chipset

Aspeed AST2500

Input /Output

Others

(1) ID button

USB

(5) USB3.0 ports (2 at rear, 2 via cable, Type-A)

COM

(1) DB-9 COM Connector (at rear, COM1) + (1) Header (COM2)

VGA

(1) D-Sub 15-pin VGA port (at rear)

RJ-45

(1) GbE port dedicated for IPMI

Audio

Line-in, Line-out, Mic-in, Surround, Side surround, CEN/LFE at rear

Front Panel

(1) 2x12-pin SSI front panel header

SATA

(2) SATA/SATA-DOM connectors + (3) Mini-SAS (4-in-1) connectors

Power

ATX 24-pin + 8-pin power connectors

TPM (Optional)

TPM Support

Please refer to our TPM supported list.

System Monitoring

Chipset

Aspeed AST2500

Fan

Total (6) 4-pin headers

Temperature

Monitors temperature for CPU & memory & system environment

Voltage

Monitors voltage for CPU, memory, chipset & power supply

LED

Over temperature warning indicator / Fan & PSU fail LED indicator

Others

Watchdog timer support

Server Management

Onboard Chipset

Onboard Aspeed AST2500

AST2500 iKVM Feature

24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

AST2500 IPMI Feature

IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

BIOS

Brand / ROM size

AMI / 32MB

Feature

Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1

Physical Dimension

Form Factor

SSI CEB

Board Dimension

12" x 10.9" (305 x 276.86mm)

Regulation

FCC (DoC)

Class A

CE (DoC)

Class A

Operating Environment

Operating Temp.

10° C ~ 35° C (50° F~ 95° F)

Non-operating Temp.

- 40° C ~ 70° C (-40° F ~ 158° F)

In/Non-operating Humidity

90%, non-condensing at 35° C

RoHS

RoHS 6/6 Compliant

Yes

Operating System

OS supported list

Please refer to our AVL support lists.

Package Contains

Motherboard

(1) S5630 Motherboard

Manual

(1) Quick Installation Guide

Installation CD

(1) TYAN Device Driver CD
